Additional Specifications: Air Inlet Thread is 1/4 in. NPT.
* Air Flow / Consumption Specifications are @ 90 psig (6.2 bar)

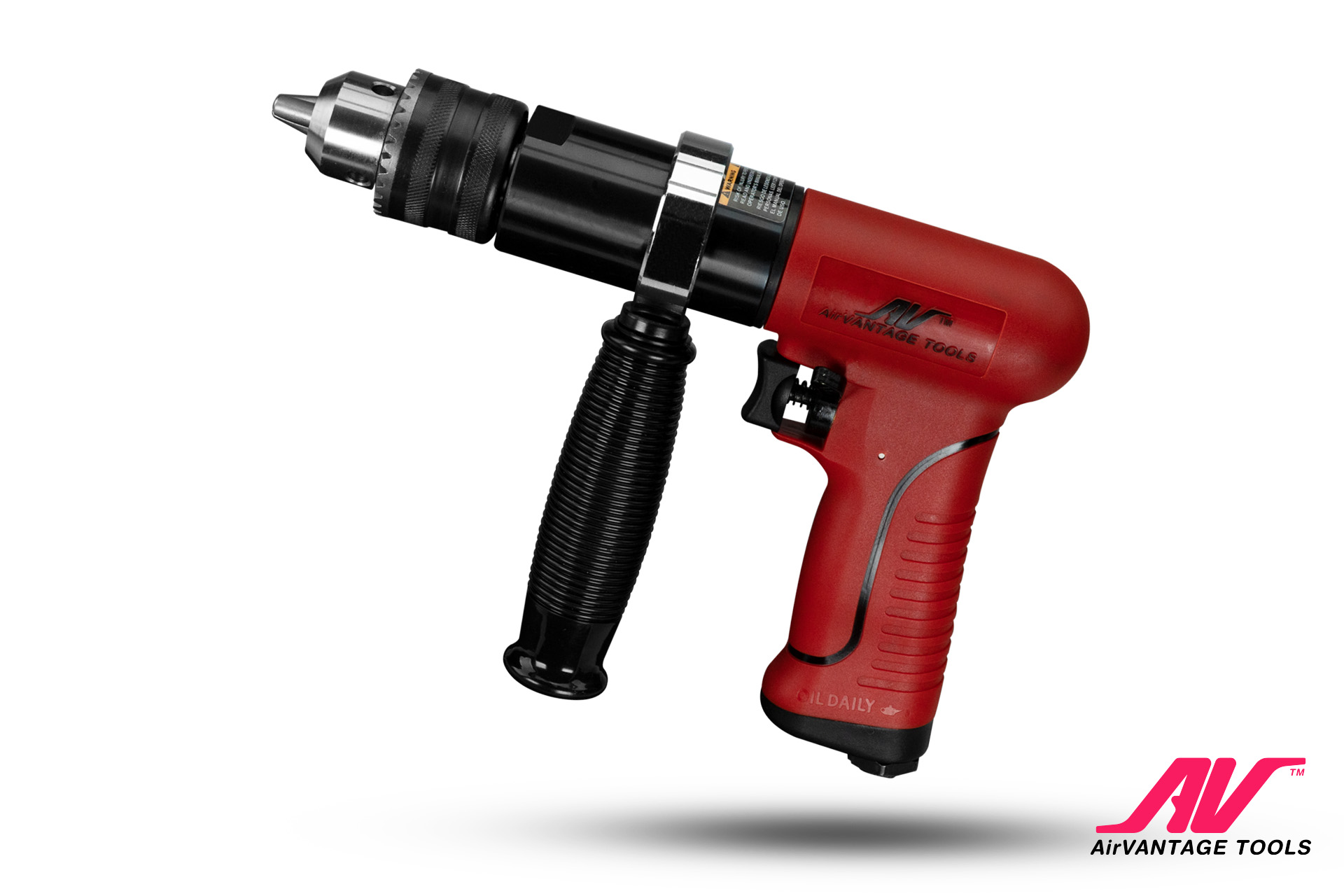

| Model Number | 001161 | 001162 | 001163 | 001164 |
| Free Speed (RPM) | 2,100 | 3,200 | 800 | 550 |
| Chuck Capacity Inch (mm) | 3/8 (10) | 3/8 (10) | 1/2 (13) | 1/2 (13) |
| Height Inch (mm) | 6.50 (165) | 6.50 (165) | 6.50 (165) | 6.50 (165) |
| Length Inch (mm) | 7.60 (193) | 7.60 (193) | 8.39 (213) | 8.82 (224) |
| Product Net Weight Pound (kg) | 2.11 (0.96) | 2.20 (1.00) | 2.86 (1.30) | 3.08 (1.40) |
| Air Consumption SCFM (LPM) | 29 (821) | 29 (821) | 29 (821) | 29 (821) |
| Air Hose I.D. Inch (mm) | 3/8 (10) | 3/8 (10) | 3/8 (10) | 3/8 (10) |
